Ngaphakathi kweDry Transformer Solid State High Frequency Welder

Le TENYES Ngaphakathi kweDry Transformer Solid State High Frequency Welder yenzelwe ngokukodwa i-welding ye-seam pipe welding.

Yamkela amacandelo amandla aphezulu e-US IR IRFP460 MOSFET kunye neJamani IXYS Inkampani DSEI60-06A i-diode yokubuyisela ngokukhawuleza. I-capacitor yamandla aphezulu C kunye ne-inductor coil L idibanisa imowudi yangoku ehambelana ne-high-voltage resonance circuit, engadingi i-transformer output. Ngaloo ndlela, akuphuculi kuphela ukusebenza kakuhle, kodwa kwandisa ukuthembeka kwe-welder.

I-TENYES SCR Ngaphakathi kweDry Transformer Solid State High Frequency Welder Intshayelelo

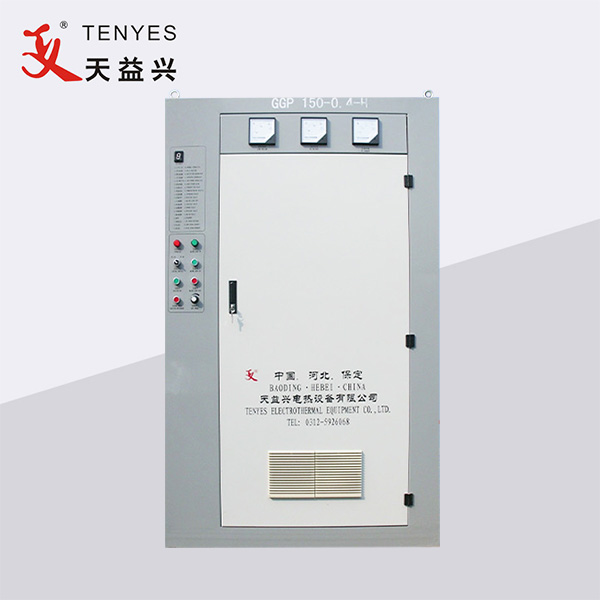

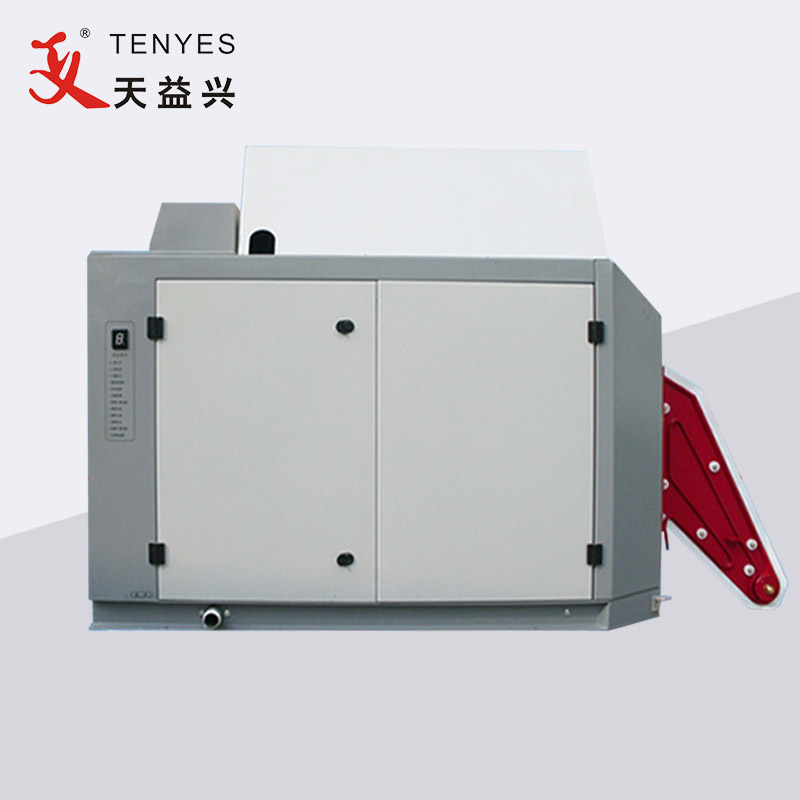

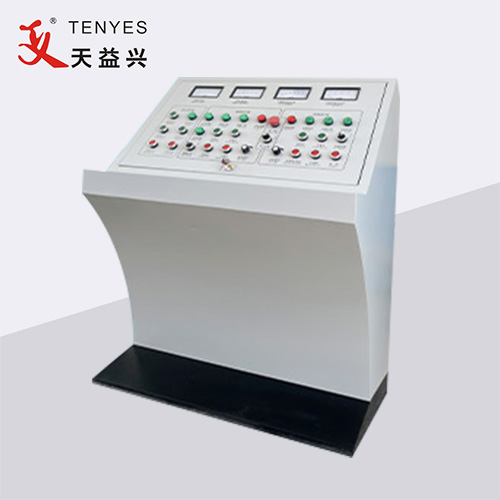

Le TENYES SCR Ngaphakathi kweDry Transformer Solid State High Frequency Welder iyona mbhobho welder ezinzile, kwaye lo welder kunye newaranti ye-1. I-TENYES SCR Ngaphakathi kwe-Dry Transformer Solid State High Frequency Welder ibandakanya ukulungiswa kwekhabhinethi, ikhabhinethi ye-inverter (kubandakanywa ne-air conditioner), i-console, inkqubo yokupholisa kunye ne-step-down transformer. Samkela iteknoloji yokulungisa i-SCR. Sinokwenza i-SCR Ngaphakathi kweDry Transformer Solid State High Frequency Welder ukusuka kwi-50KW ukuya kwi-1200KW.

I-TENYES SCR Ngaphakathi kwe-Dry Transformer Solid State High Frequency Welder Parameter (Inkcazo)

I-TENYES SCR Ngaphakathi kweDry Transformer Solid State High Frequency Welder Feature kunye nesicelo

Umda weWelder wosetyenziso lwe-SCR Ngaphakathi kweDry Transformer Solid State High Frequency Welder:

Isetyenziselwa ikakhulu ukuwelda iintlobo ezahlukeneyo zemibhobho yentsimbi yobude njengentsimbi ephantsi yekhabhoni, intsimbi ephezulu, intsimbi yealloyi, njl.

I-SCR Ngaphakathi kweDry Transformer Solid State High Frequency Welder features:

1. Akukho mbane ophezulu, ukhuselekile, uthembekile kwaye uyasebenza.

2. Amacandelo aphambili yimveliso ye-brand eyaziwayo ngamazwe ngamazwe, njenge: IR, IXYS kunye ne-Siemens, njl.

3. I-Voltage kunye ne-current double control control circuit, ukulawulwa okuzinzile, ukuchaneka okuphezulu, ukuphazamiseka okuncinci.

4. Uluhlu lwamandla alunamanyathelo oluhlengahlengiswayo ukusuka kwi-0-100%, kunye ne-over-voltage, over-current and other fault protection systems.

5. Isiboniso sesimo sokusebenza sidijithali, ukusebenza kulula, kwaye ukugcinwa kulungele.

6. Umgangatho we-welding ulungile, kwaye ububanzi kunye nobushushu be-weld bufana.

I-TENYES SCR Ngaphakathi kweDry Transformer Solid State High Frequency Welder Iinkcukacha

Umgaqo osisiseko we-SCR Ngaphakathi kweDry Transformer Solid State High Frequency Welder: emva kokuba inqanaba eliqhelekileyo elitshintshayo langoku lihla liyi-transformer, lingena kwikhabhinethi yokulungisa kwaye lihlala lihlengahlengiswa ngokuqhubekayo emva kokulungiswa, ukulawulwa kwamandla ombane kunye nokucoca amakhonkco. ; Emva koko ingena kwibhulorho ye-inverter (icandelo eliphambili lamandla lisebenzisa i-transistor yamandla aphezulu i-MOSFET) kunye notshintsho kwi-high-frequency current, engasetyenziselwa ukufudumeza kwe-induction ngokunikezela ngomkhumbi womthwalo. Iyunithi yamandla e-inverter trough ithatha isakhiwo semodyuli, isibini ngasinye samandla sinokukhupha ngaphezu kwe-50KW, kwaye inani leeyunithi zamandla ezisetyenzisiweyo ziyahluka ngokuxhomekeke kumandla esixhobo. Umkhombe ukwimo ye-series-parallel mix resonance, akukho voltage ephezulu, kwaye akukho siguquli sokuphuma.
