150KW High Frequency Pipe Welding Machine

I-TENYES 150KW High Frequency Pipe Welding Machine ithatha inqanaba lesithathu le-AC (i-voltage yomgca 380V, i-frequency 50HZ) ngokusebenzisa isiguquli esisezantsi ukuya kwibhulorho yokulungisa (i-SCR yenqanaba lesithathu lebhulorho yokulungiswa okugcweleyo yolawulo) ibe yi-pulse ngqo yangoku, kwaye le DC ngokusebenzisa amaza okucoca ingena kwi-inverter bhulorho (ithatha i-MOS ephezulu yangoku yobonelelo lwamandla kunye nokuhanjiswa kwamandla angoku ukuya kwi-FET kwaye ingasetyenziselwa ukuwelda umbhobho. Ibhulorho ye-Inverter ithatha ubume beemodyuli kunye neyunithi nganye yamandla okuguqula amandla inokukhupha ngaphezulu kwe-50KW, izixhobo zamandla ezahlukeneyo kunye nokusebenzisa iiyunithi zamandla ahlukeneyo, kodwa ubume obusisiseko buyafana. Isekethe yeTanki ithatha uthotho kunye nesakhiwo esihambelanayo, akukho siguquli se-welding esiphumayo, akukho mbane ophezulu kunye nokunciphisa ilahleko yokuhambisa.

Thumela uMbuzo

Ingcaciso yeMveliso

150KW High Frequency Pipe Welding Machine ukuthumela ngaphandle Ethiopia

150KW High Frequency Umbhobho Welding Machine Ukukhuphela ngaphandle Cambodia

I-150kW yombhobho we-slid-state-frequency high-frequency welder welder ethumela ngaphandle kwiRiphabhliki yaseDominican

IiParameters zobuGcisa ze-150KW High Frequency Pipe Welding Machine

Amandla emveliso alinganisiwe: 150kW

Imowudi ye-Welding: uhlobo lokungeniswa

Umlinganiselo wombane we-DC: 240V

Ilinganiswe kwi-DC yangoku: 750A

Ireyithwe rhoqo: 400KHZ

Ukusebenza ngokupheleleyo: η≥85%

Umbane wobonelelo lwamandla: 3-isigaba 380V/50Hz (izixhobo zinokusebenza kumbane 380V±5%)

Umthamo wokuhambisa amandla: ≥200kVA

Umba wamandla:≥0.85

Ikhebula lonikezelo lwamandla: isigaba ngasinye sentambo yobhedu egqunywe ngeplastiki ≥150mm², ucingo lomhlaba≥75mm²

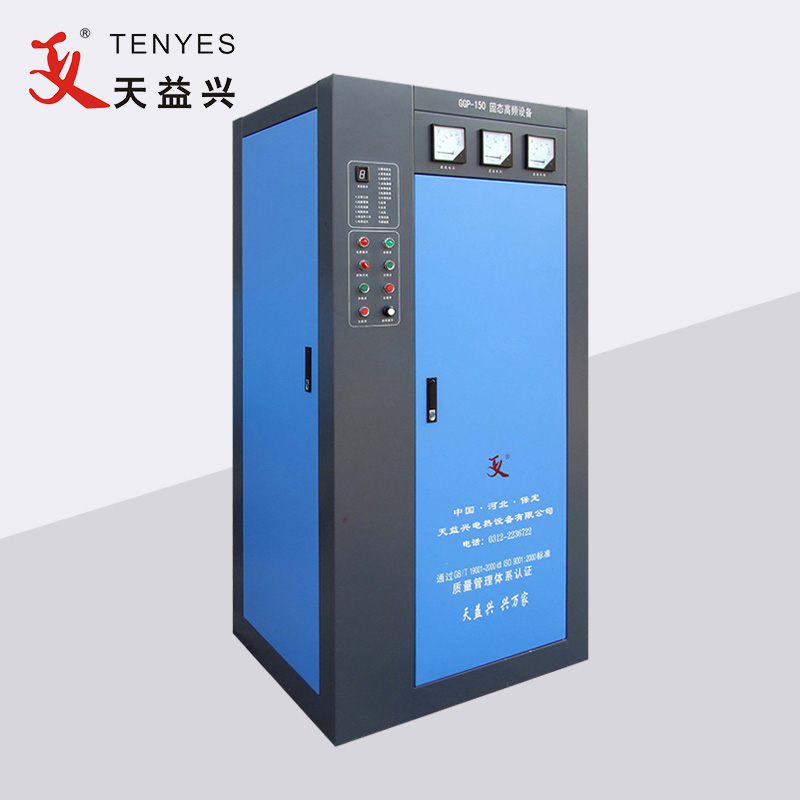

Ikhabhinethi yemveliso ye-inverter

Ukubonelela ityhubhu yensimbi / i-pipe welding high frequency power supply, i-IRFP460 kunye ne-diode yokubuyisela ngokukhawuleza (FRD) i-DSEI60-06P ye-American IR corporation kunye ne-Jamani i-IXYS corporation isetyenziselwa ukwenza umguquli wombane njengesixhobo esiphambili samandla. Umatshini wokuwelda wemodyuli yomaleko omnye ungaphezulu kwe-50KW, i-150KW Umatshini wokuwelda weMibhobho ePhakamileyo uthatha iimodyuli ezi-3 zamandla (umahluko ukuya kwi-150KW) ngokuhambelana nomatshini wonke. Ireyithingi yokusebenza rhoqo yi-350 KHz. Amandla aphezulu emveliso yomatshini wonke anokuba mkhulu kune-150 KW. Iimodyuli zamandla ezifanayo zinokutshintshiselana.

Isekethe yokulawula ithatha i-microcomputer njengengundoqo kwaye iqwalasela ezinye izixhobo ze-peripheral. Zonke izinto zokulawula zihlanganiswe kwiibhodi ezimbini (enye i-rectifier kwaye enye inverter). Kwisiseko sokunika umdlalo ogcweleyo umsebenzi omkhulu wesoftware yekhompyuter kunye nehardware, olona hlengahlengiso lulungileyo lwesilungisi kunye ne-inverter, kwaye xa kuthelekiswa nesixhobo setyhubhu yokucoca i-high-frequency vacuum, inezi nzuzo zilandelayo:

Umgangatho wombhobho odibeneyo ulungile: Uthelekiso lubonisa ukuba ububanzi kunye nokufudumeza komdibaniso odibeneyo kuhambelana kwaye kukho i-welding burrs encinci.

Ugcino lwamandla: Iimvavanyo zibonisa ukuba esi sixhobo sigcina amandla ombane ngaphezulu kwe-30% xa kuthelekiswa nezinye izixhobo zetyhubhu yofutha eneenkcukacha ezifanayo kwiimeko zokusebenza ezifanayo.

Ukonga amanzi: Ngenxa yokuchithwa okuphantsi, ayifuni amanzi amaninzi, ngoko ke ukusetyenziswa kwamanzi kungaphezulu kwe-50% ngaphantsi kwetyhubhu ye-electron yenkcazo efanayo.

Umthamo omncinci, ubunzima bokukhanya: Ngenxa yokuba izixhobo eziphambili zamandla (i-MOSFET, i-capacitance, njl.) zonke zincinci, kwaye akukho zixhobo ezifana ne-filament voltage regulator, i-coil ehambelanayo, itanki yegridi, i-welding transformer, njl. Ukongeza, inombane ophantsi osebenzayo kunye nobuninzi bokupakisha, kunye nomthamo wayo wonke ungaphezu kwe-50% yesixhobo esincinci esincinci kunezinye izixhobo zetyhubhu.

Ukusebenza okulula: Ifumaneka ngoko nangoko xa ivuliwe, kwaye inokuyeka ngoko nangoko. Akukho mfuneko yokuyitshisa kwangaphambili kwityhubhu ye-electron kwaye akukho mfuneko yokuqhubeka nokupholisa emva kokuyeka kwayo.

Ukuphatha ngokukhuselekileyo: Ityhubhu ye-electron yeyezixhobo zombane ophezulu. Kukho amawaka alishumi e-volts ephezulu yoxinzelelo xa isebenza. Nangona kunjalo, i-MOSFET sisixhobo samandla ombane asezantsi kwaye sisebenza kwimowudi ye-resonance enxuseneyo (ngokungafaniyo nothotho lweresonance yomenzi), ombane wayo uphezulu ngamakhulu ambalwa eevolthi, kwaye ngokubanzi ayinakubangela ukwenzakala komntu.

ulondolozo olufanelekileyo:umboniso wokusilela ngokucacileyo.

Le mifuziselo ingentla ingasetyenziswa kwi-150KW, i-frequency 400KHZ i-slid state frequency high.
