I-100KW State Solid State High Frequency Compact Pipe Welder

Igama leSixhobo: 100KW State Solid State High Frequency Compact Pipe Welder

Iinkcukacha zezixhobo: GGPY100KW

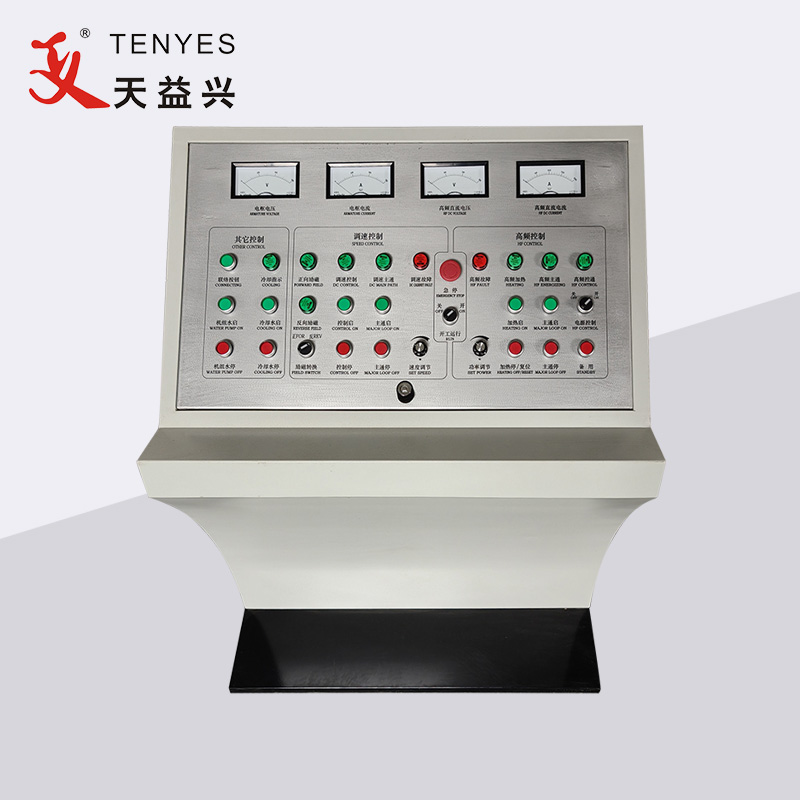

Amacandelo: ikhabhinethi ephambili, ikhonsoli yokusebenza, inkqubo yokupholisa

Ukusetyenziswa kwezixhobo: ikakhulu ezisetyenziselwa ukuwelda intsimbi yekhabhoni eqhelekileyo, intsimbi engatyiwayo, ialuminiyam kunye neminye imibhobho yentsimbi engeyiyo.

Iimbonakalo:

1. Umgangatho ophezulu wamandla: I-Power factor ≥ 0.95, akukho zixhobo zembuyekezo zamandla ezongezelelweyo ezisebenzayo ezifunekayo kwesi sixhobo.

2. Ukugcinwa kwamandla kunye nokusebenza okuphezulu: Ekubeni i-transformer eqhelekileyo ye-high-frequency isolation step-down transformer isusiwe, umgca wokudibanisa uyancipha kakhulu, ngoko ukulahlekelwa kwamandla okusebenzayo kuyancipha. Uvavanyo lubonise ukuba umatshini wonke-kwinye wonga malunga ne-30% xa kuthelekiswa nesiqhelo se-slid-state high-frequency.

3. Umbane wokukhupha uzinzile: i-coefficient ye-ripple ye-output incinci, ipayipi yensimbi edibeneyo ine-burrs encinci, i-weld seam ifana kakhulu, ukugqiba kuphezulu, kwaye umgangatho we-weld ulungile.

4. Ubungakanani obuncinci, ubunzima obulula, uxhulumaniso olulula, ukukhuselwa ngokupheleleyo, ixesha lokukhusela i-fault chain ≤10us, ukulungiswa ngokufanelekileyo kunye nokugcinwa, kunye nezixhobo ezithembekileyo.

Ubungakanani besicelo:

①　Idamitha yombhobho wentsimbi φ 7- φ 12

②　Ubukhulu bodonga lwentsimbi yomtya yi-0.2-1mm

③　Indlela yokuwelda: induction welding

④　Isantya se-Welding: 60-130 M / min

Iiparamitha zokusebenza:

① Amandla alinganisiweyo: 100KW

② Umlinganiselo wombane we-DC: 250V

③ Ilinganiswe kwi-DC yangoku: 450A

④ Ilinganiswe rhoqo: 600KHZ

⑤ Ukusebenza kakuhle: ≥ 85%

⑥ Imveliso amandla frequency aphezulu: ≥ 100kW

Iimfuno zobonelelo lombane:

① Ifom yonikezelo lwamandla: isigaba sesithathu sombane wombane we-AC, umbane womgca wama-380 ± 5%,

② Umthamo wokubonelela ngombane: ngaphezu kwe-100kVA.

③ Into yamandla: ≥ 0.85

④ Ikhebula lonikezelo lwamandla: ucingo lweplastiki yobhedu ≥ 75mm²ngesigaba ngasinye, ucingo lomhlaba ≥ 30mm²

I-100KW State Solid State High Frequency Compact Pipe Welder iquka isilungisi kunye nesiguquli.

Inxalenye yokuhlaziya: isetyenziselwa ukutshintsha isigaba esithathu se-380V AC sokuhlaziya sibe yi-0-250V ehlengahlengiswayo ye-DC yangoku emva kommiselo wombane, ukuze kuhlangatyezwane neemfuno zeyunithi yoguqulo lwamva. Yakhelwe kwibhulorho yokulungisa inqanaba lesithathu, i-capacitor yokutshaja, ibhuloho ye-IGBT, i-reactor yokucoca, isixhobo sokucoca, isiphaluka sokulawula kunye nokukhusela kunye nesixhobo sokubonisa.

Iimpawu zesekethe yokulawula umlungisi: ilawulwa yi-microcomputer ye-chip enye (mcs89c51) kunye nesekethe enkulu edibeneyo yedijithali, enolawulo oluchanekileyo oluchanekileyo, ukuphendula ngokukhawuleza kunye nomboniso ocacileyo welizwe.

Imowudi yokukhusela isoftware: ngaphezulu-yangoku (9), i-low-current (8), impazamo yangaphandle (4), impazamo yonikezelo lwamandla angenayo (ilahleko yesigaba, i-over-voltage, under-voltage, ukungalingani okunzulu kombane wesigaba sesithathu, bonisa i-3), impazamo yamanzi okupholisa (2), i-voltage engafanelekanga kunye nomlinganiselo wangoku (L), i-inverter fault (Y).

Ukukhuselwa kwe-Hardware: ukhuseleko oluphambili lokucima, ukunyanzeliswa kwe-capacitance, ukukhuselwa kokumelana (ukukhusela umbane), ukhuseleko lokunyibilika ngokukhawuleza.

inverter inxalenye: jikisa i-0-250 DC yangoku ethunyelwe yikhabhinethi yokubuyisela kwi-high-frequency current yamakhulu e-kHz ukuhlangabezana neemfuno zemibhobho edityanisiweyo.

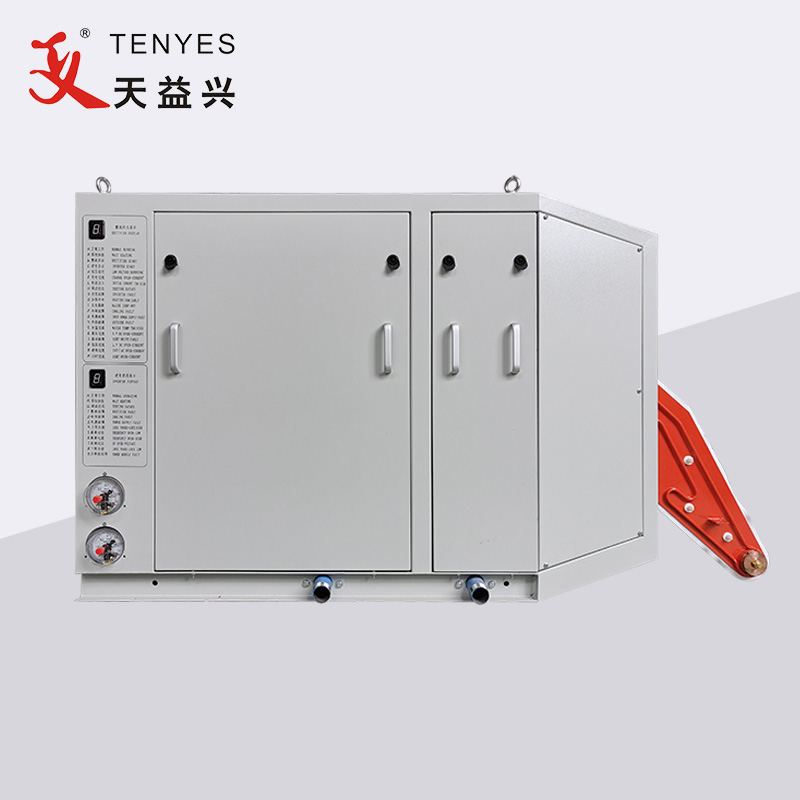

Ikhabhinethi ye-inverter iqulethwe ngamacandelo alandelayo: iyunithi yamandla, i-channel capacitor, ukusabela okuvuzayo, isiphaluka sokulawula, i-air conditioner epholileyo, njl.
